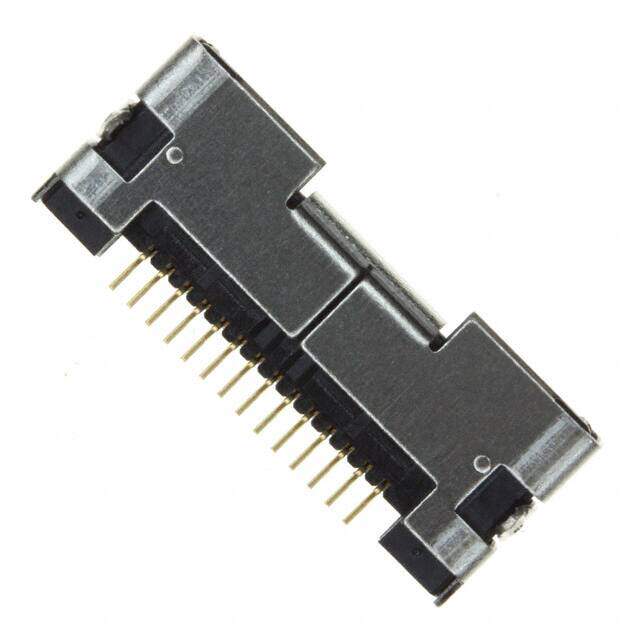

RL01-R14PE
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 14P 0.031 GOLD SMD R/A
PDF
/
Inventory: 2581
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Insulation Material Polyphenylene Sulfide (PPS)
Technical
Packaging Tray
Published 2004
Series RL01/RL01S/RL02S
Feature Board Guide, Shielded
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 14
Number of Rows 1
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Center Strip Contact
Pitch 787.4μm
Insulation Height 0.114 2.90mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.031 0.80mm
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
