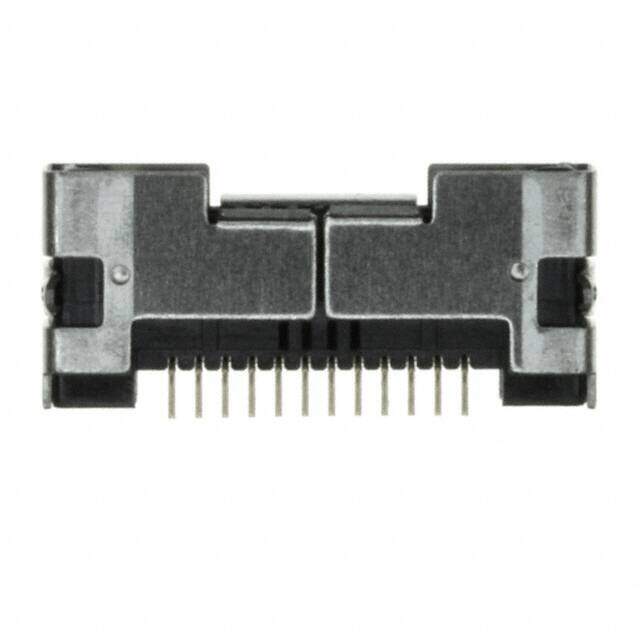

RL01-R12PE image
Favorite
RL01-R12PE image
Favorite

RL01-R12PE

JAE Electronics
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 12P 0.031 GOLD SMD R/A
PDF
/
Inventory: 6068
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash

Technical

Contact Finish - Post Tin
Pitch - Mating 0.031 0.80mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.114 2.90mm
Pitch 787.4μm
Contact Type Center Strip Contact
Contact Finish - Mating Gold
Fastening Type Friction Lock
Number of Rows 1
Number of Positions 12
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Guide, Shielded
Series RL01/RL01S/RL02S
Published 2004
Packaging Tray

Physical

Insulation Material Polyphenylene Sulfide (PPS)
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Contact Material Copper Alloy
