IL-WX-20SB-VF-BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

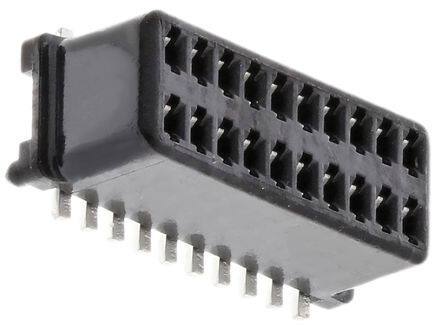

JAPAN AVIATION ELECTRONICS INDUSTRY IL-WX-20SB-VF-BEBoard-To-Board Connector, Vertical, Surface Mount, Receptacle, 20 Contacts, 0.8 mm
PDF
/
Inventory: 3751
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 4.5mm
Technical
Insulation Resistance 100MOhm
Contact Resistance 25mOhm
Lead Pitch 800μm
Row Spacing - Mating 0.059 (1.50mm)
Insulation Color Black
Pitch - Mating 0.031 0.80mm
Current Rating 500mA
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.128 3.25mm
Orientation Straight
Current Rating (Amps) 0.5A
Contact Type Forked
Contact Finish - Mating Tin
Fastening Type Push-Pull
Number of Rows 2
Applications General Purpose
Number of Positions 20
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Feature Board Guide, Solder Retention
Series IL-WX
Published 2000
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
