IL-WX-10SB-VF-BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

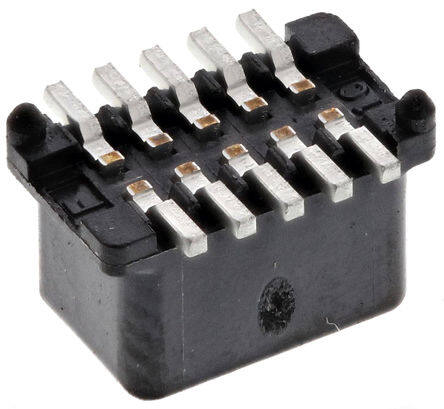

JAPAN AVIATION ELECTRONICS INDUSTRY IL-WX-10SB-VF-BE Board-To-Board Connector, Vertical, Surface Mount, Receptacle, 10 Contacts, 0.8 mm
PDF
/
Inventory: 5314
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount PCB, Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2000
Series IL-WX
Feature Board Guide, Solder Retention
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 10
Applications General Purpose
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Forked
Current Rating (Amps) 0.5A
Orientation Straight
Insulation Height 0.128 3.25mm
Style Board to Board
Number of Positions Loaded All
Current Rating 500mA
Pitch - Mating 0.031 0.80mm
Insulation Color Black
Row Spacing - Mating 0.059 (1.50mm)
Lead Pitch 800μm
Contact Resistance 25mOhm
Insulation Resistance 100MOhm
Dimensions
Stack Height (Mating) 4.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status RoHS Compliant
