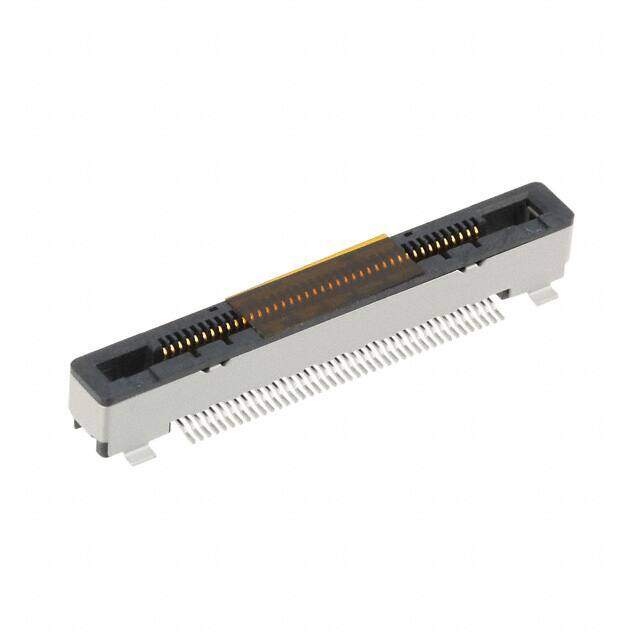

FI-RE41S-VF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 41POS 0.02 GOLD SMD
PDF
/
Buying Options
Total Price: USD $5.2
Unit Price: USD $5.2008
≥1 USD $5.2008
≥10 USD $4.7212
≥100 USD $4.15954
≥500 USD $3.535638
≥1000 USD $3.015698
Inventory: 1200
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Insulation Material Plastic
Technical
Operating Temperature -40°C~80°C
Packaging Tray
Published 2007
Series FI-R
Feature Shielded, Solder Retention
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 41
Applications General Purpose, Medical
Number of Rows 1
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Female Blade Socket
Current Rating (Amps) 0.8A per Contact
Orientation Straight
Insulation Height 0.183 4.65mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 800mA
Pitch - Mating 0.020 0.50mm
Contact Finish - Post Tin
Dimensions
Stack Height (Mating) 10.1mm 16.1mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
