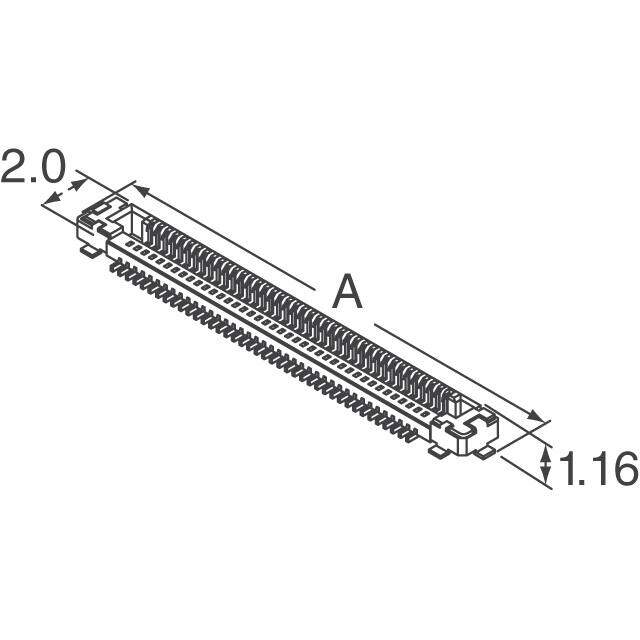

FI-J40S-VF15N-R3000 image
Favorite
FI-J40S-VF15N-R3000 image
Favorite

FI-J40S-VF15N-R3000

JAE Electronics
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Headers & Wire Housings 40P Recept Solder Gold Flash Reel
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.34235
≥1 USD $1.34235
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
≥500 USD $0.8949
Inventory: 104
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Insulation Material Plastic

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2006
Series FI-J
Feature Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 40
Applications General Purpose
Number of Rows 1
Voltage - Rated 50V
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Non-Gendered
Current Rating (Amps) 0.3A per Contact
Insulation Height 0.046 1.16mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.016 0.40mm
Insulation Color Black

Dimensions

Contact Finish Thickness - Mating 3.90μin 0.099μm
Contact Finish Thickness - Post Flash
Stack Height (Mating) 1.58mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
