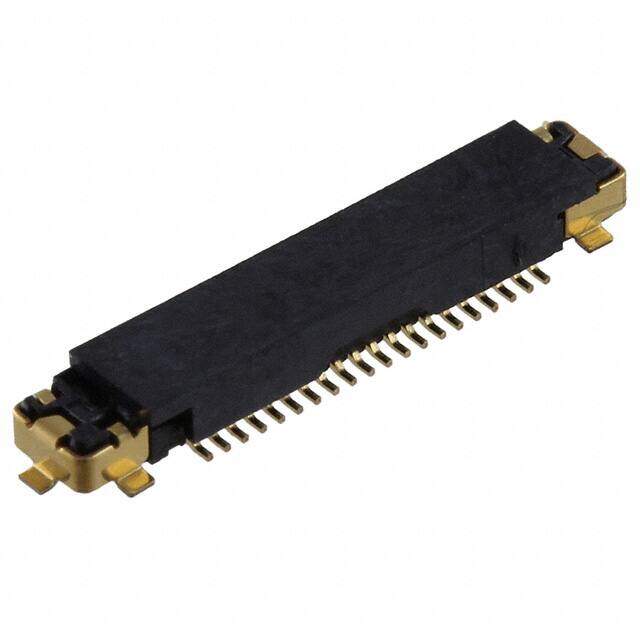

FI-J20S-VF15N-R3000
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 0.4MM 20POS VERT
PDF
/
Inventory: 2621
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 1.58mm
Contact Finish Thickness - Post Flash
Contact Finish Thickness - Mating 3.90μin 0.099μm
Technical
Contact Finish - Post Gold
Insulation Color Black
Pitch - Mating 0.016 0.40mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.046 1.16mm
Pitch 406.4μm
Current Rating (Amps) 0.3A per Contact
Contact Type Non-Gendered
Contact Finish - Mating Gold
Fastening Type Friction Lock
Voltage - Rated 50V
Number of Rows 1
Applications General Purpose
Color Black
Number of Positions 20
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Pick and Place, Solder Retention
Series FI-J
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Insulation Material Plastic
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Copper Alloy
