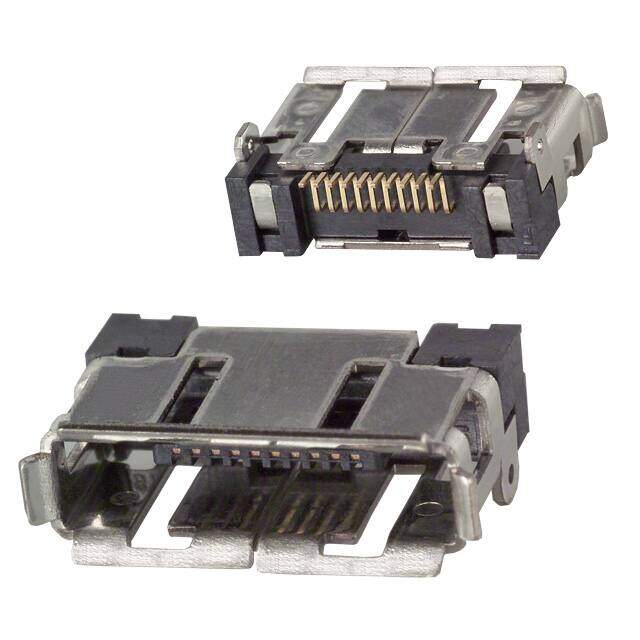

ST60-10P(30)
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 10POS RT ANG SMD
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.6544
≥1 USD $1.6544
≥10 USD $1.44144
≥100 USD $1.37984
≥500 USD $1.349216
≥1000 USD $1.28788
≥3000 USD $1.165226
Inventory: 1161
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Board Edge, Surface Mount, Right Angle
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -30°C~80°C
Packaging Tape & Reel (TR)
Published 2008
Series ST
JESD-609 Code e4
Feature Board Guide, Shielded
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 10
Applications General Purpose, Telecommunications
Number of Rows 1
Voltage - Rated 100VAC
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Non-Gendered
Mixed Contacts NO
Current Rating (Amps) 0.5A
Total Number of Contacts 10
Insulation Height 0.118 3.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 500mA
Pitch - Mating 0.020 0.50mm
Insulation Color Black
Shell Finish TIN
Voltage - Rated AC 100V
Contact Gender MALE
UL Flammability Code 94V-0
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post Flash
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
