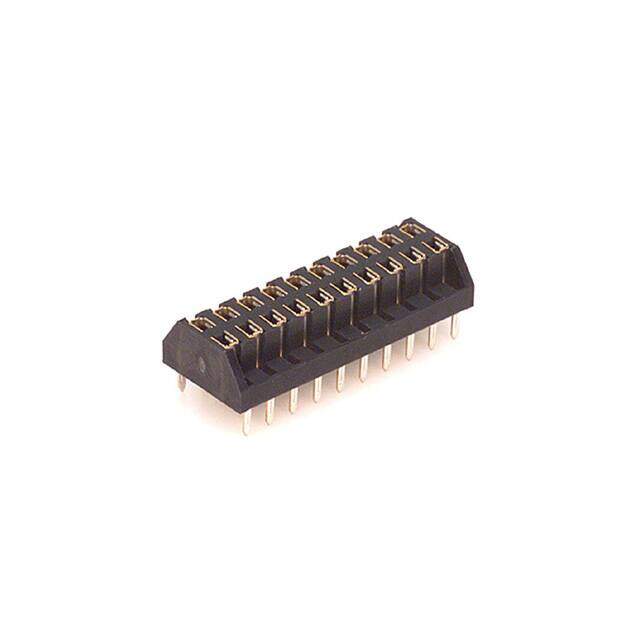

MDF7-20D-2.54DSA
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 20POS DOUBLE GOLD
PDF
/
Inventory: 6116
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.118 inch
Contact Finish Thickness - Mating 39.4μin 1.00μm
Technical
Durability 50 Cycles
PCB Contact Row Spacing 8.509 mm
Dielectric Withstanding Voltage 650VAC V
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
Body Depth 0.197 inch
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.394 inch
PCB Contact Pattern RECTANGULAR
Lead Pitch 2.54mm
Number Of PCB Rows 2
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.197 5.00mm
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature PACKAGING IN 100 PIECES
Voltage - Rated 250VAC
Number of Rows 2
Number of Positions 20
Connector Type Receptacle, Bottom Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Series MDF7
Packaging Bulk
Operating Temperature -35°C~85°C
Physical
Housing Material Plastic
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
