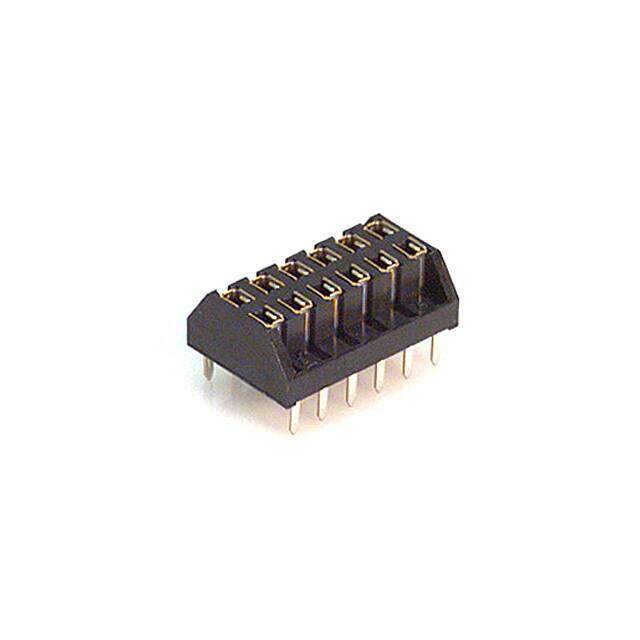

MDF7-12D-2.54DSA
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 12POS DOUBLE GOLD
PDF
/
Inventory: 1596
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Polyamide
Technical
Operating Temperature -35°C~85°C
Packaging Bulk
Series MDF7
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom Entry
Number of Positions 12
Number of Rows 2
Voltage - Rated 250VAC
Additional Feature PACKAGING IN 100 PIECES
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.197 5.00mm
Style Board to Board
Number of Positions Loaded All
Reach Compliance Code unknown
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 250V
Reliability COMMERCIAL
Body Length or Diameter 0.6 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.118 3.00mm
Number Of PCB Rows 2
Lead Pitch 2.54mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.394 inch
UL Flammability Code 94V-0
Body Depth 0.197 inch
Rated Current (Signal) 3A
Contact Resistance 30mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Dielectric Withstanding Voltage 650VAC V
PCB Contact Row Spacing 8.509 mm
Durability 50 Cycles
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Length - Termination 0.118 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Alternative Model
