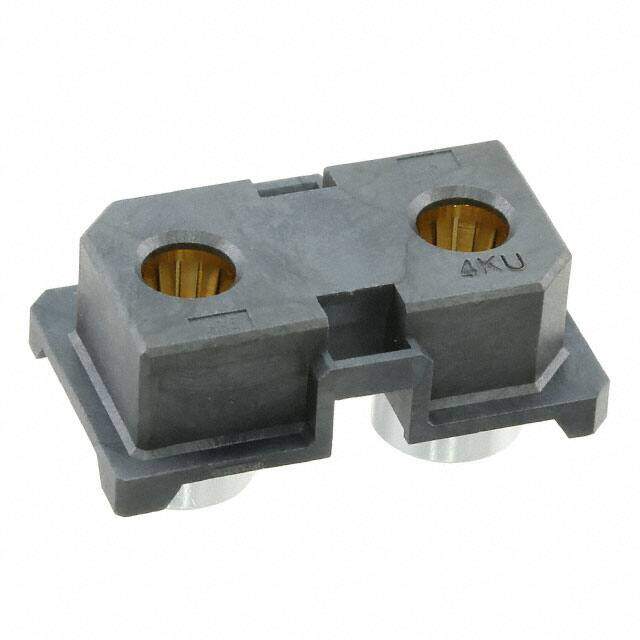

IT-PD-2S-DIR image
Favorite
IT-PD-2S-DIR image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 2POS DETACH SIDE
PDF
/
Buying Options
Total Price: USD $15.77
Unit Price: USD $15.7696
≥1 USD $15.7696
≥10 USD $13.66904
≥100 USD $12.95536
≥500 USD $12.767568
≥1000 USD $11.265584
Inventory: 486
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 11mm ~ 44mm

Technical

Contact Length - Post 0.126 3.20mm
Body Length or Diameter 0.866 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.472 12.00mm
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.291 7.40mm
Current Rating (Amps) 60A per Contact
Mixed Contacts YES
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Holder
Voltage - Rated 300V
Number of Rows 1
Number of Positions 2
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place
Series IT-P
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -55°C~85°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
