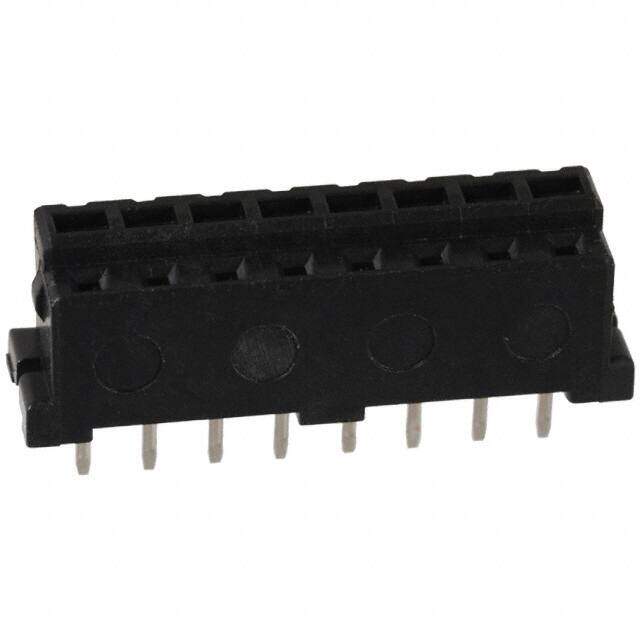

DF3-8S-2DSA(20)
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 8POS 2MM VERT TIN
PDF
/
Inventory: 1000
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Plastic
Technical
Operating Temperature -30°C~85°C
Packaging Tube
Published 2004
Series DF3
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 8
Number of Rows 1
Voltage - Rated 30VAC
Additional Feature LOW PROFILE
Fastening Type Friction Lock
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A
Terminal Pitch 2mm
Insulation Height 0.232 5.90mm
Style Board to Board or Cable
Number of Positions Loaded All
Reach Compliance Code unknown
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 0.709 inch
Contact Length - Post 0.118 3.00mm
Number Of PCB Rows 1
Lead Pitch 2.5mm
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Housing Color Black
Body Depth 0.232 inch
Contact Resistance 30mOhm
Mating Contact Pitch 0.079 inch
Polarization Key HOUSING SIDE
Dielectric Withstanding Voltage 650VAC V
Durability 30 Cycles
Insertion Force-Max 4.3924 N
Dimensions
Stack Height (Mating) 6.6mm 7.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
