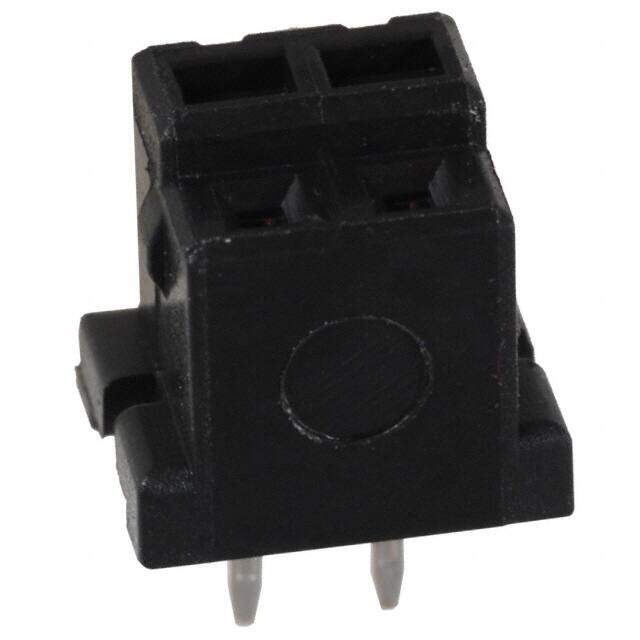

DF3-2S-2DSA(20)
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 2POS 2MM VERT TIN
PDF
/
Inventory: 9458
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 6.6mm 7.5mm
Technical
Withdrawl Force-Min .3058 N
Durability 30 Cycles
Dielectric Withstanding Voltage 650VAC V
Polarization Key HOUSING SIDE
Mating Contact Pitch 0.079 inch
Contact Resistance 30mOhm
Housing Color Black
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Lead Pitch 2.5mm
Number Of PCB Rows 1
Contact Length - Post 0.118 3.00mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.232 5.90mm
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Friction Lock
Additional Feature LOW PROFILE
Voltage - Rated 30VAC
Number of Rows 1
Number of Positions 2
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Series DF3
Published 2004
Packaging Tube
Operating Temperature -30°C~85°C
Physical
Housing Material Plastic
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
