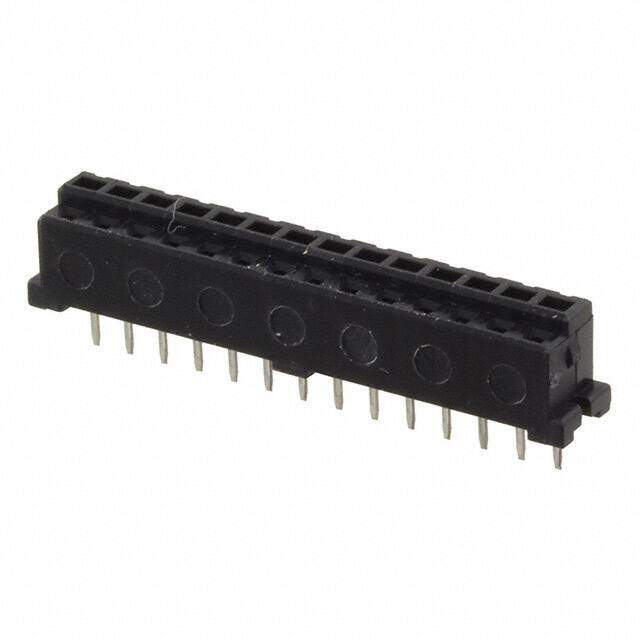

DF3-14S-2DSA(55)
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 14POS 2MM VERT GOLD
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.091622
≥1 USD $2.091622
≥10 USD $1.973234
≥100 USD $1.861544
≥500 USD $1.756164
≥1000 USD $1.656759
Inventory: 4889
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Plastic
Technical
Operating Temperature -30°C~85°C
Packaging Tube
Published 2004
Series DF3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 14
Number of Rows 1
Voltage - Rated 30VAC
HTS Code 8536.69.40.40
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Female Socket
Orientation Straight
Insulation Height 0.232 5.90mm
Style Board to Board or Cable
Number of Positions Loaded All
Reach Compliance Code unknown
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Contact Length - Post 0.118 3.00mm
Lead Pitch 2mm
Contact Finish - Post Tin
Contact Gender Female
Housing Color Black
Dimensions
Contact Finish Thickness - Mating 8.00μin 0.203μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Stack Height (Mating) 6.6mm 7.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
