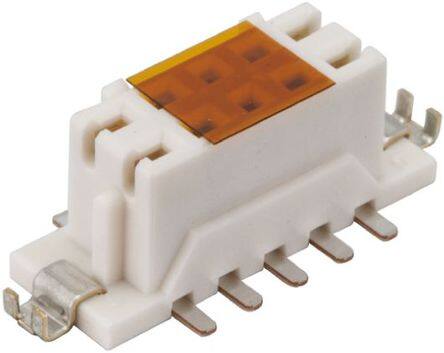

DF11CZ-16DS-2V(52)
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 16P SMT RECEPTACLE
PDF
/
Buying Options
Total Price: USD $2.05
Unit Price: USD $2.051658
≥1 USD $2.051658
≥10 USD $1.935526
≥100 USD $1.82597
≥500 USD $1.722615
≥1000 USD $1.625113
Inventory: 8801
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Operating Temperature -30°C~85°C
Packaging Tape & Reel (TR)
Published 2013
Series DF11
Feature Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 16
Color Black
Applications General Purpose
Number of Rows 2
Voltage - Rated 250V
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Female Socket
Orientation Straight
Insulation Height 0.234 5.95mm
Style Board to Board or Cable
Number of Positions Loaded All
Reach Compliance Code unknown
Current Rating 2A
Pitch - Mating 0.079 2.00mm
Insulation Color Beige
Row Spacing - Mating 0.079 (2.00mm)
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 8.00μin 0.203μm
Contact Finish Thickness - Post 78.7μin 2.00μm
Stack Height (Mating) 7.55mm 8.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
