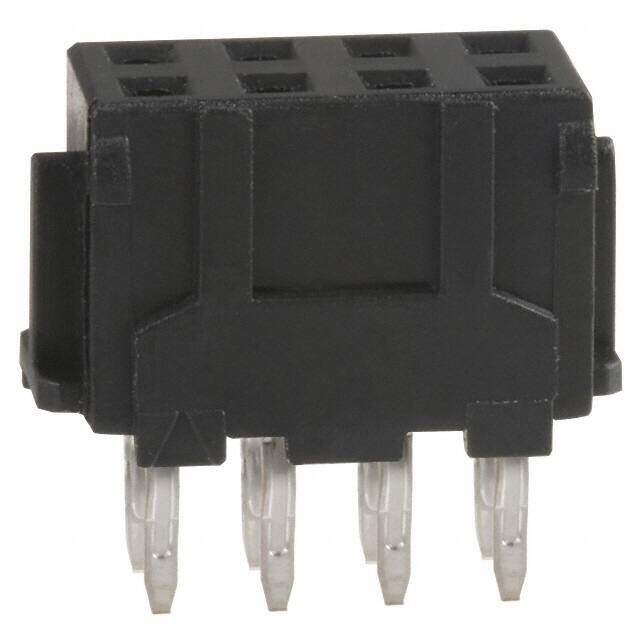

DF11-8DS-2DSA
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 8POS 0.079 TIN PCB
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7619
≥1 USD $0.7619
≥10 USD $0.6251
≥100 USD $0.6061
≥500 USD $0.58615
≥1000 USD $0.56715
Inventory: 1482
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.8mm 8.45mm
Technical
Durability 30 Cycles
Dielectric Withstanding Voltage 650VAC V
Polarization Key HOUSING SIDE
Mating Contact Pitch 0.079 inch
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
Housing Color Black
Body Breadth 0.197 inch
PCB Contact Pattern RECTANGULAR
Lead Pitch 2mm
Number Of PCB Rows 2
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.079 (2.00mm)
Body Length or Diameter 0.394 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.244 6.20mm
Current Rating (Amps) 2A
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Friction Lock
Additional Feature 100 PCS. PER PACK
Voltage - Rated 250V
Gender Female
Number of Rows 2
Applications General Purpose
Number of Positions 8
Connector Type Receptacle
ECCN Code EAR99
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Series DF11
Published 2004
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Housing Material Plastic
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
