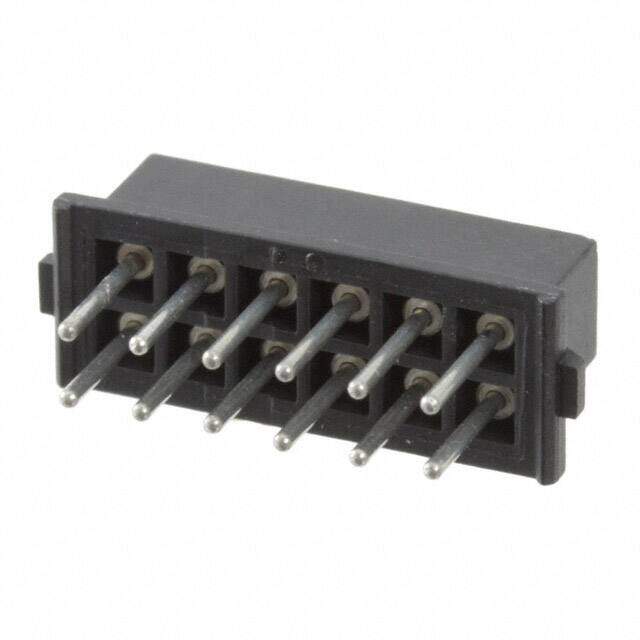

M80-8871201
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 6+6 POS DIL FEMALE VERT TIN/LEAD
PDF
/
Buying Options
Total Price: USD $6.18
Unit Price: USD $6.1776
≥1 USD $6.1776
≥10 USD $5.5891
≥100 USD $4.8939
≥500 USD $4.121181
≥1000 USD $3.606038
Inventory: 1702
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Beryllium Copper
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2009
Series Datamate L-Tek
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Applications Automotive, General Purpose, Military
Number of Rows 2
Gender Receptacle
Voltage - Rated 800V
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Type Female Socket
Pitch 2mm
Orientation Straight
Depth 5.45mm
Insulation Height 0.202 5.14mm
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Contact Resistance 25mOhm
Contact Gender Female
Contact Finish - Post Tin-Lead
Number of Contacts 12
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Compliance
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.23mm 7.85mm
Contact Finish Thickness - Post 137.8μin 3.50μm
Contact Finish Thickness - Mating 12.0μin 0.30μm
Length 15.15mm
