M80-8501645
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

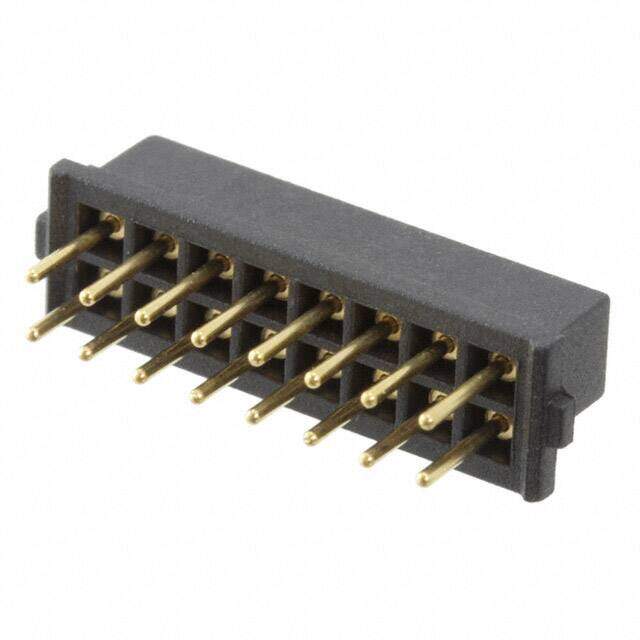

Headers & Wire Housings 8+8 POS DIL FEMALE VERT GOLD
PDF
/
Buying Options
Total Price: USD $8.93
Unit Price: USD $8.932
≥1 USD $8.932
≥10 USD $8.039812
≥100 USD $7.185534
≥500 USD $6.020291
≥1000 USD $5.321158
Inventory: 46
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Beryllium Copper
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2005
Series Datamate L-Tek
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 16
Applications Automotive, General Purpose, Military
Number of Rows 2
Voltage - Rated 800V
Additional Feature POLARISED
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Insulation Height 0.202 5.14mm
Style Board to Board or Cable
Number of Positions Loaded All
Reach Compliance Code not_compliant
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.754 inch
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Insulation Resistance 100000000Ohm
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Withdrawl Force-Min .1946 N
Dimensions
Contact Finish Thickness - Mating 12.0μin 0.30μm
Contact Finish Thickness - Post 10.0μin 0.25μm
Length - Termination 0.118 inch
Stack Height (Mating) 7.23mm 7.85mm
