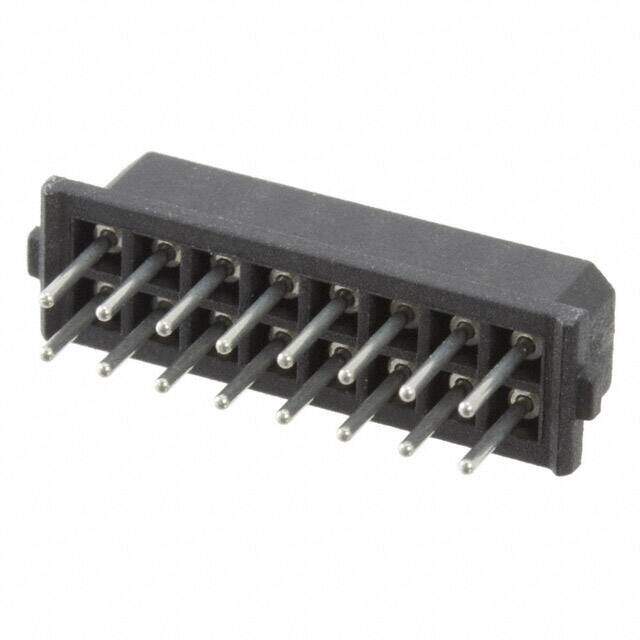

HARWIN M80-8501642 Wire-To-Board Connector, Dual in Line, Datamate L-Tek M80 Series, Through Hole, Receptacle
PDF
/
Buying Options
Total Price: USD $7.92
Unit Price: USD $7.92
≥1 USD $7.92
≥10 USD $7.12529
≥100 USD $6.368322
≥500 USD $5.335598
≥1000 USD $4.715982
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Housing Material Polyamide
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2001
Series Datamate L-Tek
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 16
Applications Automotive, General Purpose, Military
Number of Rows 2
Voltage - Rated 800V
Additional Feature POLARISED
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 120V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Orientation Straight
Depth 5.5mm
Insulation Height 0.202 5.14mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Gender Female
UL Flammability Code 94V-0
Housing Color Black
Contact Resistance 25mOhm
Insulation Resistance 100MOhm
Mating Contact Pitch 0.079 inch
Max Voltage Rating (AC) 120V
Max Current Rating 3A
Polarization Key POLARIZED HOUSING
Dimensions
Length 19.15mm
Contact Finish Thickness - Mating 12.0μin 0.30μm
Contact Finish Thickness - Post 157.5μin 4.00μm
Stack Height (Mating) 7.23mm 7.85mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
