M80-8501242
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

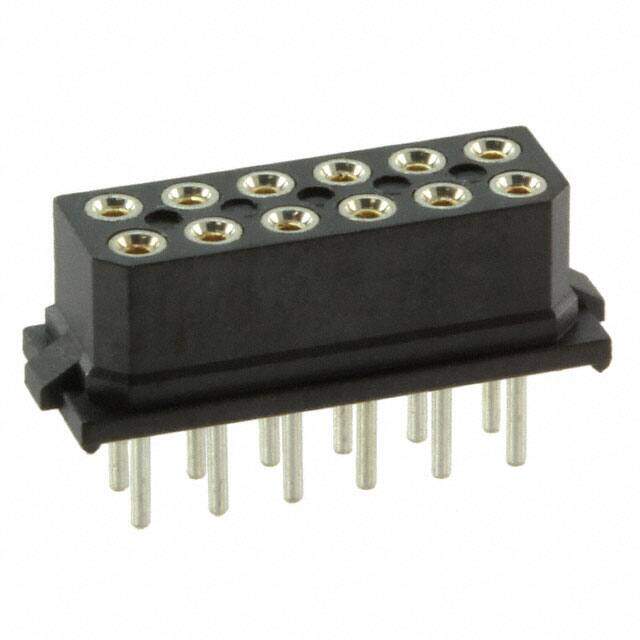

HARWIN M80-8501242 Wire-To-Board Connector, Datamate L-Tek M80 Series, Through Hole, Receptacle, 12 Contacts, 2 mm
PDF
/
Inventory: 2546
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.23mm 7.85mm
Contact Finish Thickness - Post 157.5μin 4.00μm
Contact Finish Thickness - Mating 12.0μin 0.30μm
Length 15.15mm
Technical
Max Voltage Rating (DC) 120V
Polarization Key POLARIZED HOUSING
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Mating Contact Pitch 0.079 inch
Insulation Resistance 100MOhm
Contact Resistance 25mOhm
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.202 5.14mm
Depth 5.5mm
Orientation Straight
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 120V
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Additional Feature POLARISED
Voltage - Rated 800V
Number of Rows 2
Applications Automotive, General Purpose, Military
Number of Positions 12
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Datamate L-Tek
Published 2005
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Polyamide
Material Nylon
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
