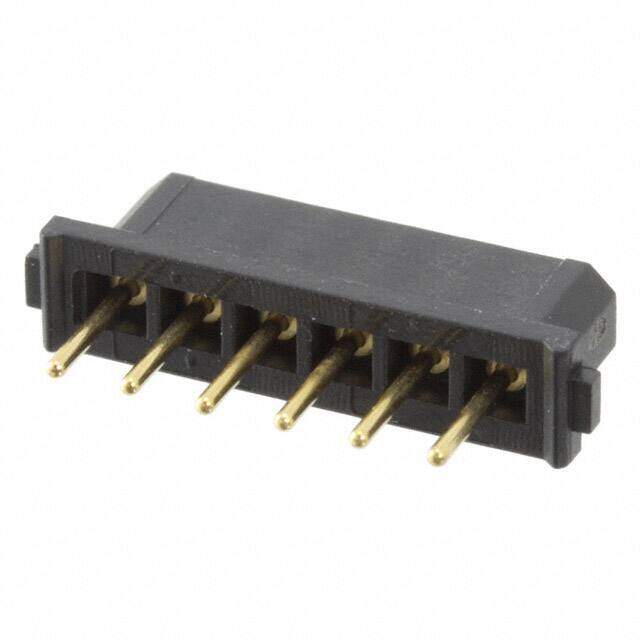

M80-8400645
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 6 POS SIL FEMALE VERT GOLD
PDF
/
Buying Options
Total Price: USD $3.76
Unit Price: USD $3.7576
≥1 USD $3.7576
≥10 USD $3.3979
≥100 USD $2.974954
≥500 USD $2.7566
Inventory: 114
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.23mm 7.83mm
Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 12.0μin 0.30μm
Length 15.15mm
Technical
Number of Poles 6
Wire/Cable Gauge 22 AWG
Durability 500 Cycles
Polarization Key POLARIZED HOUSING
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Mating Contact Pitch 0.079 inch
Insulation Resistance 100mOhm
Contact Resistance 25mOhm
Rated Current (Signal) 3A
Working Voltage 120V
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Lead Pitch 2mm
Number Of PCB Rows 1
Contact Length - Post 0.126 3.20mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.202 5.14mm
Depth 3.5mm
Orientation Straight
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 120V
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Additional Feature POLARISED
Voltage - Rated 800V
Number of Rows 1
Applications Automotive, General Purpose, Military
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Datamate L-Tek
Published 2006
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Polyamide
Material Glass, Thermoplastic
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Shape Circular
Package / Case SIL
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 16 Weeks
