M80-8400642
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

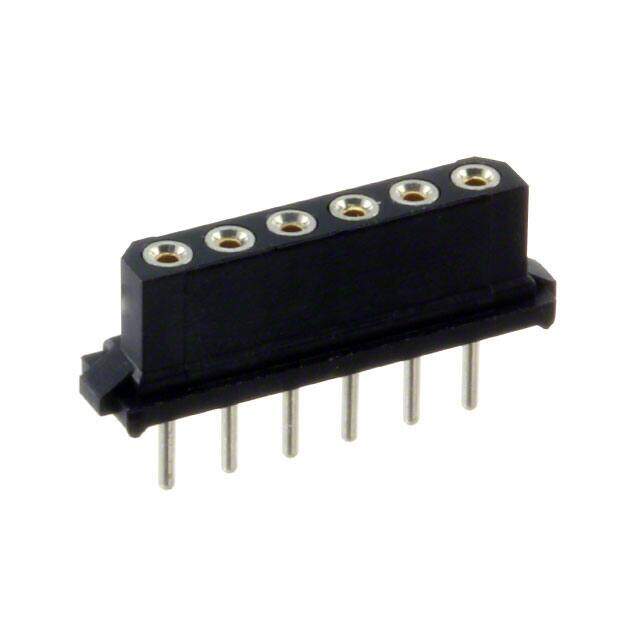

HARWIN M80-8400642 Wire-To-Board Connector, Single In Line, Datamate L-Tek M80 Series, Solder, Receptacle, 6 Contacts
PDF
/
Buying Options
Total Price: USD $4.49
Unit Price: USD $4.491637
≥1 USD $4.491637
≥10 USD $4.237395
≥100 USD $3.997535
≥500 USD $3.771264
≥1000 USD $3.557799
Inventory: 4359
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Package / Case SIL
Contact Shape Circular
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Housing Material Fiberglass
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2009
Series Datamate L-Tek
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 6
Applications Automotive, General Purpose, Military
Number of Rows 1
Voltage - Rated 800V
Additional Feature POLARISED
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 120V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Orientation Straight
Terminal Pitch 2mm
Insulation Height 0.202 5.14mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Body Length or Diameter 0.592 inch
Contact Length - Post 0.126 3.20mm
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Gender Female
UL Flammability Code 94V-0
Body Depth 0.204 inch
Contact Resistance 25mOhm
Insulation Resistance 100MOhm
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Dimensions
Contact Finish Thickness - Mating 12.0μin 0.30μm
Contact Finish Thickness - Post 137.8μin 3.50μm
Stack Height (Mating) 7.23mm 7.83mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
