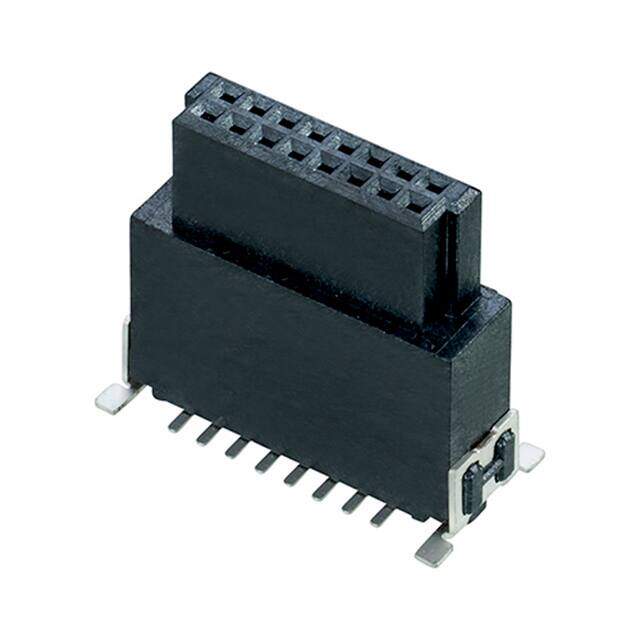

M55-6021642R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 1.27MM DUAL SMD 16POS
PDF
/
Buying Options
Total Price: USD $2.24
Unit Price: USD $2.2352
≥1 USD $2.2352
≥10 USD $2.02576
≥100 USD $1.784728
Inventory: 2130
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2017
Series Archer Kontrol
Feature Board Guide, Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 16
Applications Automotive, General Purpose, Industrial
Number of Rows 2
Voltage - Rated 100VAC
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1.2A
Insulation Height 0.537 13.64mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 1.00μin 0.025μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Stack Height (Mating) 15.4mm 16.9mm 18.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
