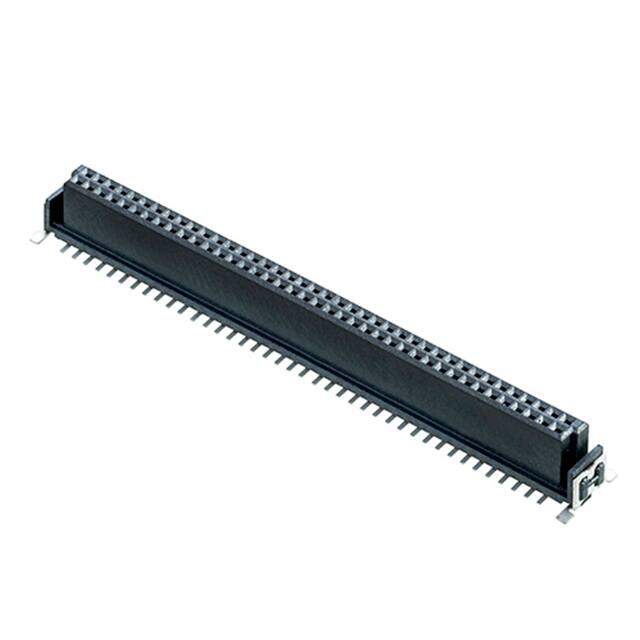

M55-6008042R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 80POS 0.05 GOLD SMD
PDF
/
Buying Options
Total Price: USD $5.47
Unit Price: USD $5.4736
≥1 USD $5.4736
≥10 USD $4.9456
≥100 USD $4.329864
Inventory: 1123
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 8mm 9.5mm 11.1mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 1.00μin 0.025μm
Technical
Contact Finish - Post Tin
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.246 6.25mm
Current Rating (Amps) 1.2A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Latch Holder
Voltage - Rated 100VAC
Number of Rows 2
Applications Automotive, General Purpose, Industrial
Number of Positions 80
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Pick and Place, Solder Retention
Series Archer Kontrol
Published 2018
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 15 Weeks
