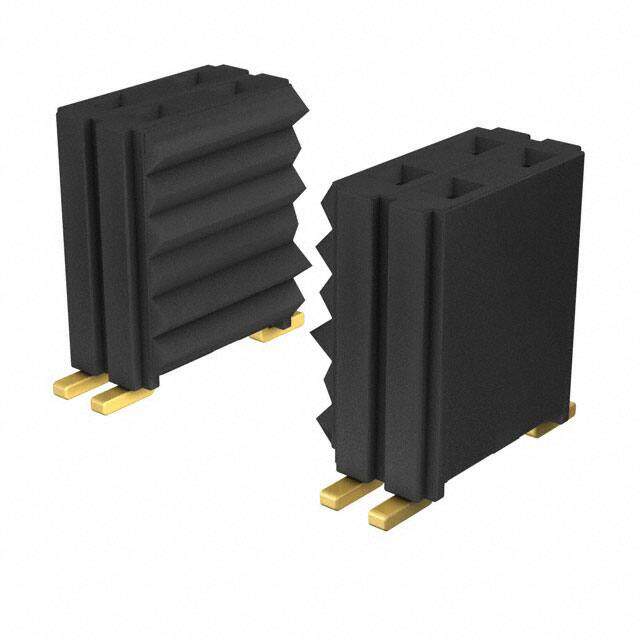

M52-5153045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings DIL,Vert Socket,SMT 30P,Double Row, Gold
PDF
/
Inventory: 3352
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 8.5mm 9.77mm
Technical
Withdrawl Force-Min .10008 N
Durability 300 Cycles
PCB Contact Row Spacing 5.461 mm
Dielectric Withstanding Voltage 1400VAC V
Mating Contact Pitch 0.05 inch
Insulation Resistance 1000000000Ohm
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.197 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.45 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.224 5.69mm
Total Number of Contacts 30
Current Rating (Amps) 1A
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Number of Rows 2
Applications General Purpose, Medical, Telecommunications
Number of Positions 60
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Series Archer M52
Published 2013
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
