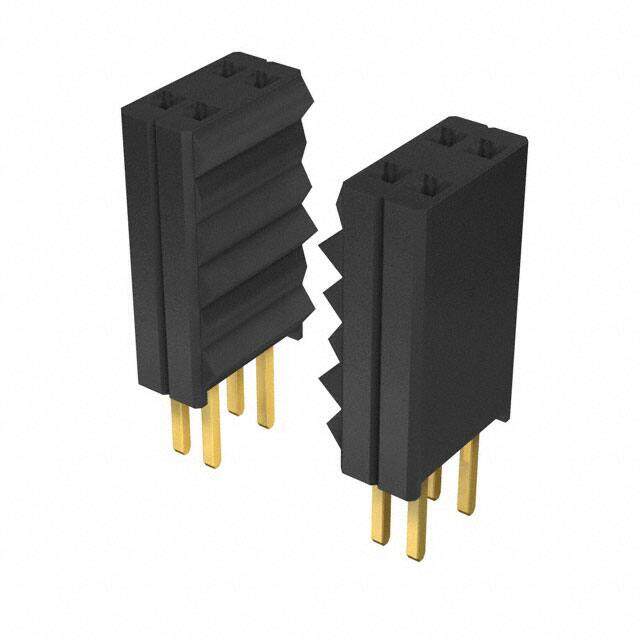

M52-5113545

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Headers & Wire Housings Vert Socket,8.5mm DIL,35P,Dbl Rw,Gold
PDF
/
Inventory: 5735
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length - Termination 0.11 inch

Technical

Withdrawl Force-Min .10008 N
Insertion Force-Max 1.4734 N
Durability 300 Cycles
Mating Contact Pitch 0.05 inch
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
Body Depth 0.335 inch
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.197 inch
Number Of PCB Rows 2
Contact Length - Post 0.110 2.79mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.75 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Current Rating (Amps) 1A
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature ROHS COMPLIANT
Number of Rows 2
Applications General Purpose, Medical, Telecommunications
Number of Positions 70
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Series Archer M52
Published 2012
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Weight 4.701003g
Insulation Material Polyamide (PA9T), Nylon 9T
Contact Shape Rectangular
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze

Alternative Model

SSW-111-02-T-T-RA

SSW-111-02-T-T-RA

Samtec Inc.
