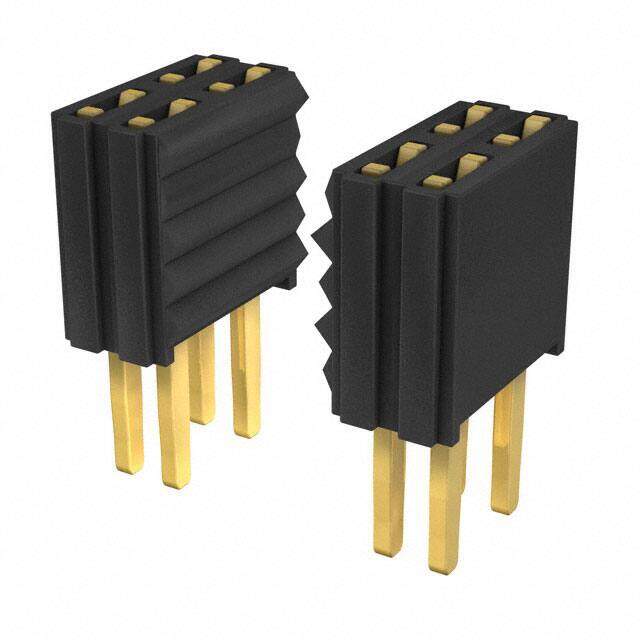

M52-5105045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings Vert Socket,4.6mm DIL,50P,Dbl Rw,Gold
PDF
/
Inventory: 7110
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Rectangular
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2013
Series Archer M52
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 100
Applications General Purpose, Medical, Telecommunications
Number of Rows 2
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Current Rating (Amps) 1A
Insulation Height 0.181 4.60mm
Style Board to Board
Number of Positions Loaded All
Reach Compliance Code not_compliant
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.118 3.00mm
Number Of PCB Rows 2
Body Breadth 0.197 inch
Contact Gender Female
UL Flammability Code 94V-0
Body Depth 0.181 inch
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.05 inch
Dimensions
Length - Termination 0.118 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
