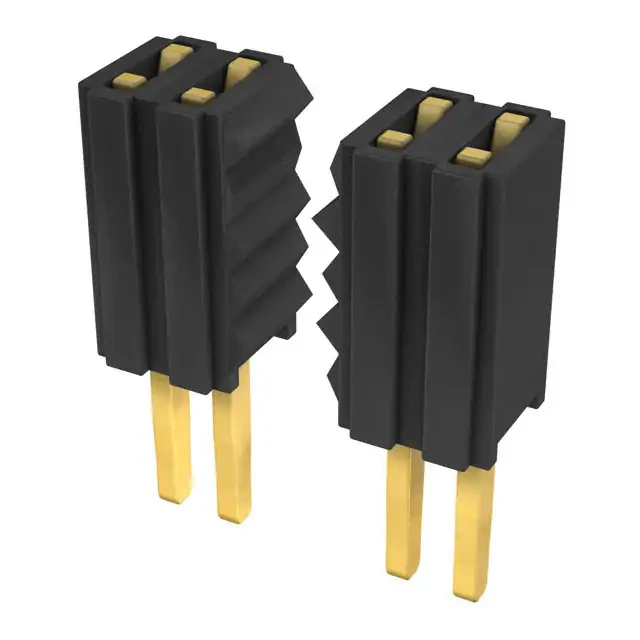

M52-5003845
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings Vert Socket, 4.6mm SIL,38P,Sngl Rw,Gold
PDF
/
Inventory: 9289
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Package / Case SIL
Contact Shape Rectangular
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2012
Series Archer M52
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 38
Applications General Purpose, Medical, Telecommunications
Number of Rows 1
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Current Rating (Amps) 1A
Insulation Height 0.181 4.60mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.118 3.00mm
Number Of PCB Rows 1
Body Breadth 0.094 inch
Contact Gender Female
UL Flammability Code 94V-0
Contact Resistance 30mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.05 inch
Dielectric Withstanding Voltage 500VAC V
Dimensions
Stack Height (Mating) 7.1mm 8.37mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
