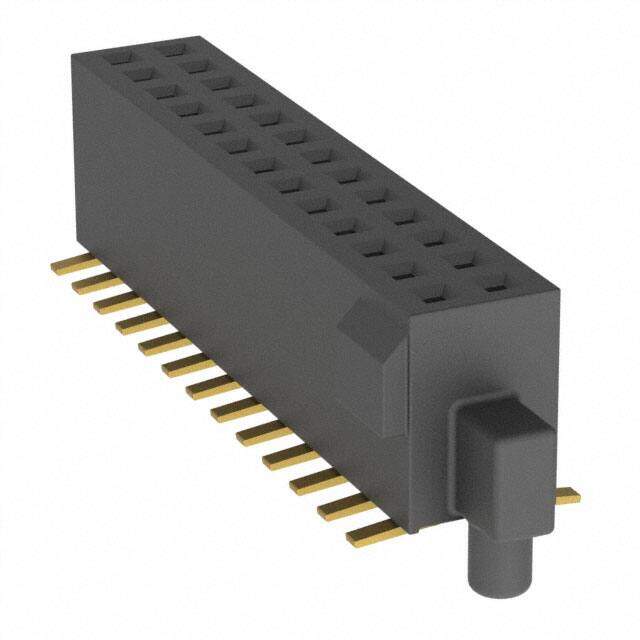

M50-4301345
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 13+13 DIL SMT GOLD VERTICAL SOCKET
PDF
/
Inventory: 4099
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2013
Series Archer M50
JESD-609 Code e4
Feature Board Guide
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 26
Applications General Purpose, Medical, Telecommunications
Number of Rows 2
Additional Feature POLARIZED
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Current Rating (Amps) 1A
Total Number of Contacts 26
Insulation Height 0.181 4.60mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.798 inch
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
UL Flammability Code 94V-0
Body Depth 0.181 inch
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZED HOUSING
Dimensions
Stack Height (Mating) 6mm 6.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
