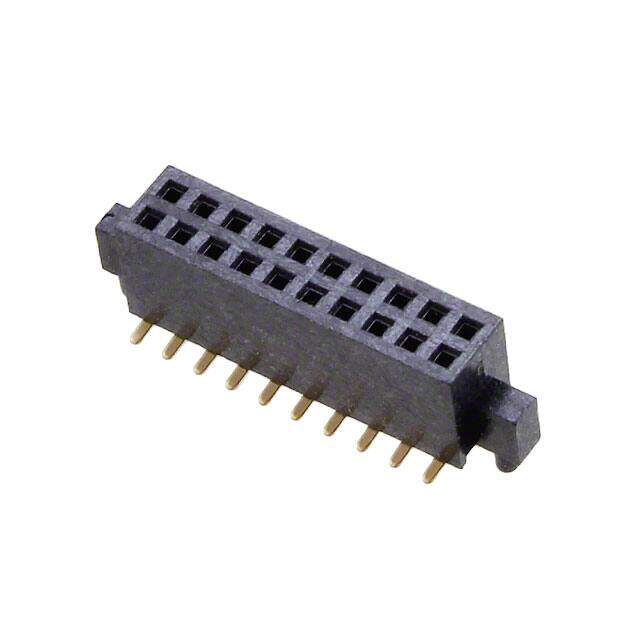

M50-4301045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 10+10 DIL SMT GOLD VERTICAL SOCKET
PDF
/
Buying Options
Total Price: USD $3.48
Unit Price: USD $3.4848
≥1 USD $3.4848
≥10 USD $3.000087
≥100 USD $2.790867
≥500 USD $2.372207
≥1000 USD $2.023358
Inventory: 2205
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 6mm 6.5mm
Length 16.45mm
Technical
Polarization Key POLARIZED HOUSING
Max Current Rating 1A
Mating Contact Pitch 0.05 inch
Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Rated Current (Signal) 1A
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Lead Pitch 1.27mm
Number Of PCB Rows 2
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Voltage - Rated AC 150V
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.181 4.60mm
Depth 4.8mm
Orientation Straight
Total Number of Contacts 20
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature POLARIZED
Voltage - Rated 500V
Number of Rows 2
Applications General Purpose, Medical, Telecommunications
Number of Positions 20
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e4
Series Archer M50
Published 2008
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 13 Weeks
