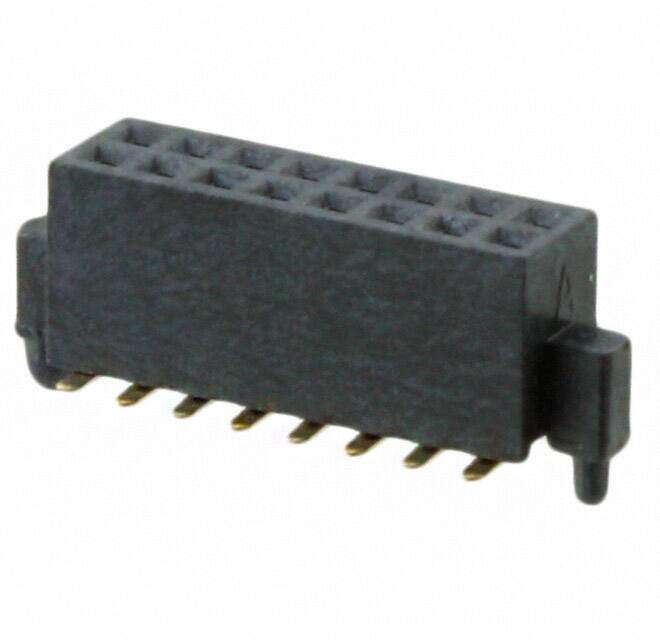

M50-4300845
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 16POS 0.05 GOLD SMD
PDF
/
Buying Options
Total Price: USD $2.78
Unit Price: USD $2.7808
≥1 USD $2.7808
≥10 USD $2.333021
≥100 USD $2.221965
≥500 USD $1.888691
≥1000 USD $1.610946
≥3000 USD $1.4443
Inventory: 230
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 6mm 6.5mm
Length 13.91mm
Technical
Polarization Key POLARIZED HOUSING
Max Current Rating 1A
Max Voltage Rating (AC) 500V
Mating Contact Pitch 0.05 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 20mOhm
Rated Current (Signal) 1A
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.181 4.60mm
Depth 3.6mm
Orientation Straight
Total Number of Contacts 16
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature POLARIZED
Voltage - Rated 500V
Number of Rows 2
Applications General Purpose, Medical, Telecommunications
Number of Positions 16
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e4
Series Archer M50
Published 2009
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Weight 266.995809mg
Housing Material Nylon
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 13 Weeks
