M50-3204045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

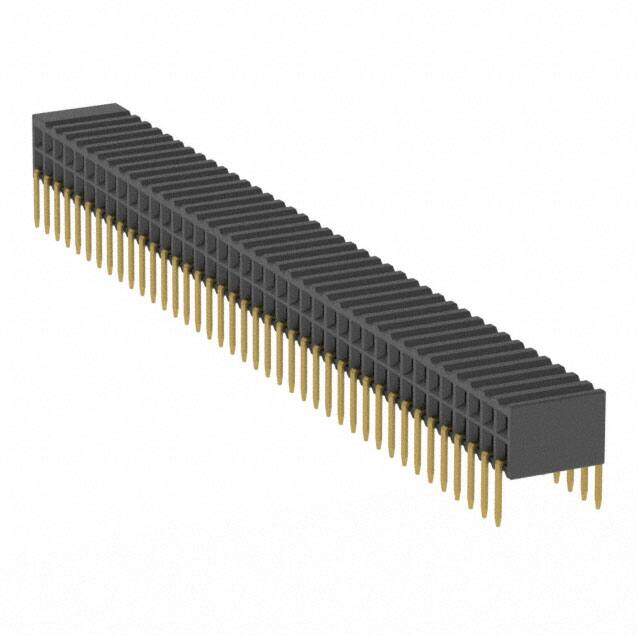

Headers & Wire Housings 40+40 DIL GOLD HORIZONTAL SOCKET
PDF
/
Inventory: 7809
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA9T), Nylon 9T
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2009
Series Archer M50
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 80
Applications General Purpose, Medical, Telecommunications
Number of Rows 2
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Current Rating (Amps) 1A
Insulation Height 0.136 3.46mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Contact Length - Post 0.094 2.40mm
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.136 inch
Contact Gender Female
UL Flammability Code 94V-0
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
PCB Contact Row Spacing 5.08 mm
Durability 300 Cycles
Insertion Force-Max .973 N
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 10.0μin 0.25μm
Length - Termination 0.094 inch
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
