M50-3202645
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

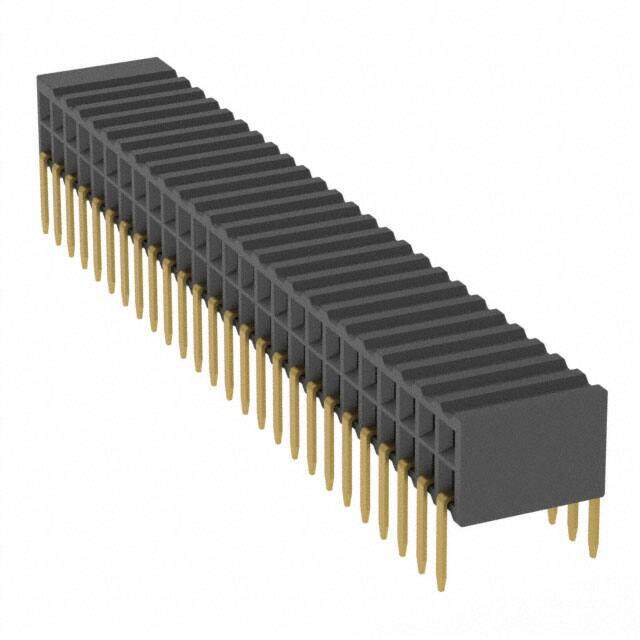

Headers & Wire Housings 26+26 DIL GOLD HORIZONTAL SOCKET
PDF
/
Inventory: 5045
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.094 inch
Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Technical
Insertion Force-Max .973 N
Durability 300 Cycles
PCB Contact Row Spacing 5.08 mm
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.05 inch
Insulation Resistance 1000000000Ohm
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.136 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Contact Length - Post 0.094 2.40mm
Row Spacing - Mating 0.050 (1.27mm)
Body Length or Diameter 1.316 inch
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Reach Compliance Code not_compliant
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.136 3.46mm
Current Rating (Amps) 1A
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature ROHS COMPLIANT
Number of Rows 2
Applications General Purpose, Medical, Telecommunications
Number of Positions 52
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Series Archer M50
Published 2012
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyamide (PA9T), Nylon 9T
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
