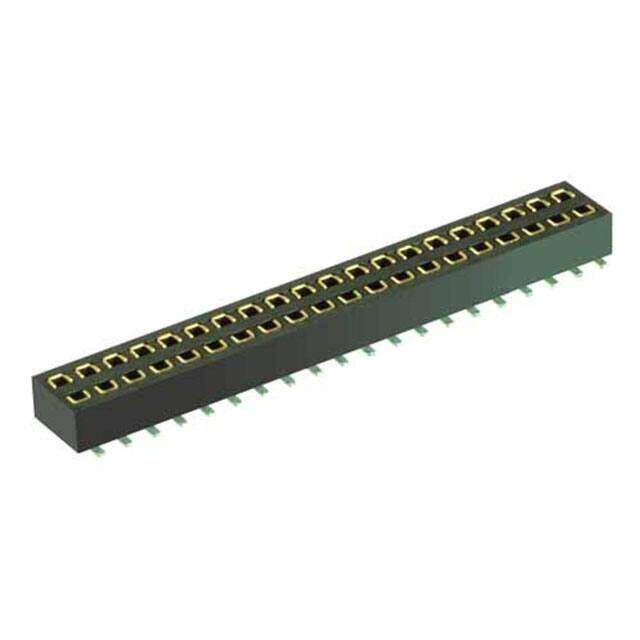

M50-3152042R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD Tube
PDF
/
Buying Options
Total Price: USD $6.36
Unit Price: USD $6.3624
≥1 USD $6.3624
≥10 USD $5.7552
≥100 USD $5.039144
≥500 USD $4.243483
Inventory: 1297
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Mounting Option 1 LOCKING
Board Mounting Option PEG
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2016
Series Archer M50
JESD-609 Code e3
Feature Board Guide, Pick and Place
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Bottom or Top Entry
Number of Positions 40
Applications General Purpose, Medical, Telecommunications
Number of Rows 2
Gender Female
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Total Number of Contacts 40
Orientation Straight
Depth 3.4mm
Insulation Height 0.087 2.20mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.134 inch
UL Flammability Code 94V-0
Rated Current (Signal) 1A
Contact Resistance 20mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.05 inch
Max Current Rating 1A
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
PCB Contact Row Spacing 3.8608 mm
Withdrawl Force-Min .1946 N
Dimensions
Length 25.8mm
Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post 100.0μin 2.54μm
Stack Height (Mating) 3.2mm 3.9mm 4.6mm 5.3mm 7.2mm 8.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
