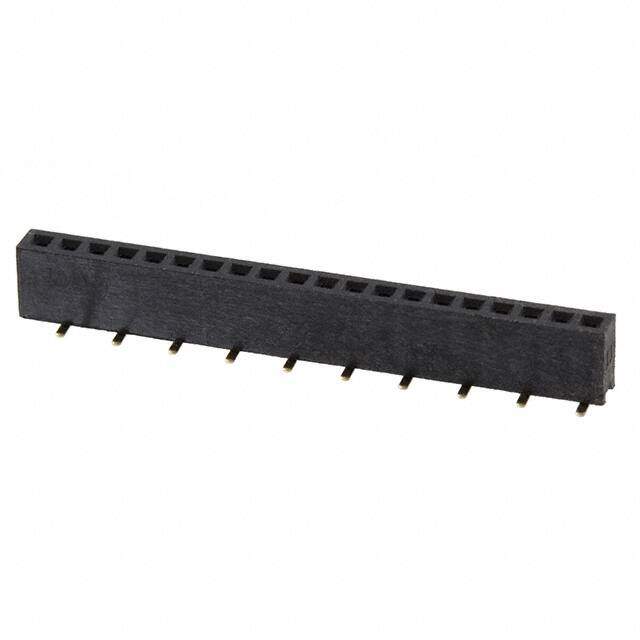

M50-3142045R

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 20POS 0.05 GOLD SMD
PDF
/
Buying Options
Total Price: USD $2.78
Unit Price: USD $2.7808
≥1 USD $2.7808
≥10 USD $2.52208
≥100 USD $2.222
≥500 USD $1.888691
Inventory: 127
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 12.0μin 0.30μm

Technical

Contact Finish - Post Tin
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.134 3.40mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500VAC
Number of Rows 1
Applications General Purpose, Medical, Telecommunications
Number of Positions 20
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Pick and Place
Series Archer M50
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C

Physical

Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 13 Weeks
