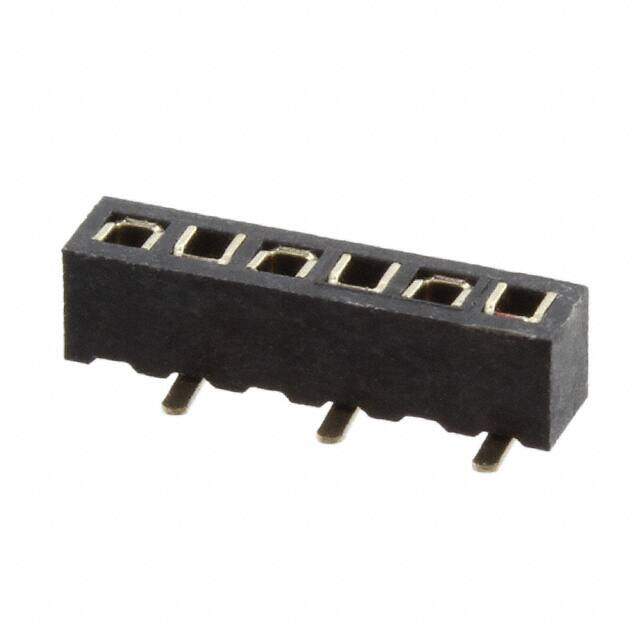

M50-3130645 image
Favorite
M50-3130645 image
Favorite

M50-3130645

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 6POS 0.05 GOLD SMD
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.9504
≥1 USD $0.9504
≥10 USD $0.754354
≥100 USD $0.721538
≥500 USD $0.59033
≥1000 USD $0.524744
≥3000 USD $0.459158
Inventory: 922
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 3.1mm 3.6mm 3.8mm
Contact Finish Thickness - Mating 12.0μin 0.30μm

Technical

Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.079 2.00mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500VAC
Number of Rows 1
Applications General Purpose, Medical, Telecommunications
Number of Positions 6
Connector Type Receptacle, Bottom or Top Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Archer M50
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 13 Weeks
