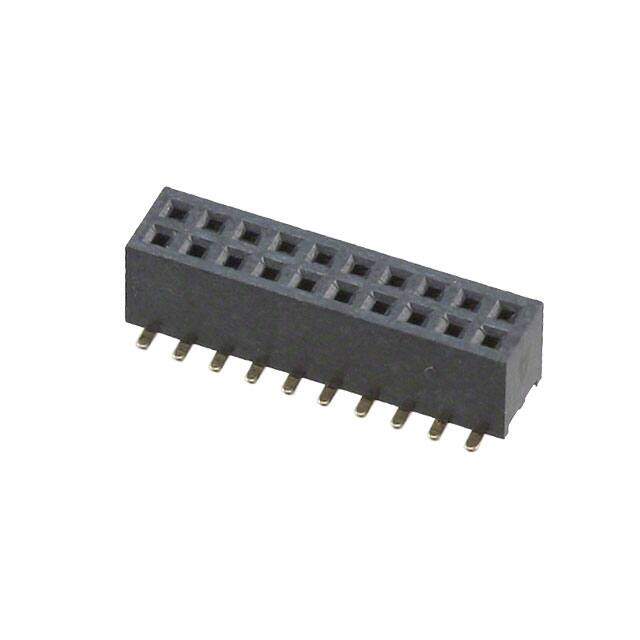

M50-3121045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 20POS 0.05 GOLD SMD
PDF
/
Buying Options
Total Price: USD $3.48
Unit Price: USD $3.4848
≥1 USD $3.4848
≥10 USD $2.9304
≥100 USD $2.790814
≥500 USD $2.372207
≥1000 USD $2.023358
Inventory: 2157
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 5.5mm 6.18mm
Contact Finish Thickness - Mating Flash
Length 13.05mm
Technical
Durability 100 Cycles
Max Current Rating 1A
Mating Contact Pitch 0.05 inch
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
Rated Current (Signal) 1A
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.142 3.60mm
Depth 3.1mm
Orientation Straight
Total Number of Contacts 20
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature ROHS COMPLIANT
Number of Rows 2
Applications General Purpose, Medical, Telecommunications
Number of Positions 20
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Archer M50
Published 2010
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Body Material Nylon
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 13 Weeks
