M50-3105045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

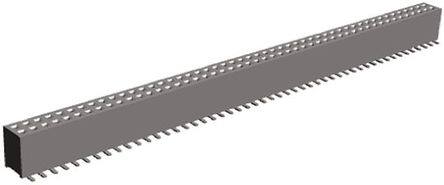

HARWIN M50-3105045 Board-To-Board Connector, Vertical, Surface Mount, Receptacle, 100, 1.27 mm, Gold Plated Contacts
PDF
/
Inventory: 8561
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2007
Series Archer M50
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 100
Applications General Purpose, Medical, Telecommunications
Number of Rows 2
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Total Number of Contacts 100
Orientation Straight
Depth 4.8mm
Insulation Height 0.181 4.60mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.050 1.27mm
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 150V
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
Lead Pitch 1.27mm
PCB Contact Pattern RECTANGULAR
Contact Gender Female
UL Flammability Code 94V-0
Housing Color Black
Rated Current (Signal) 1A
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Mating Contact Pitch 0.05 inch
Max Voltage Rating (AC) 250V
Max Current Rating 1A
Dimensions
Height 4.45mm
Length 63.85mm
Contact Finish Thickness - Mating Flash
Stack Height (Mating) 5.5mm 6.18mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
