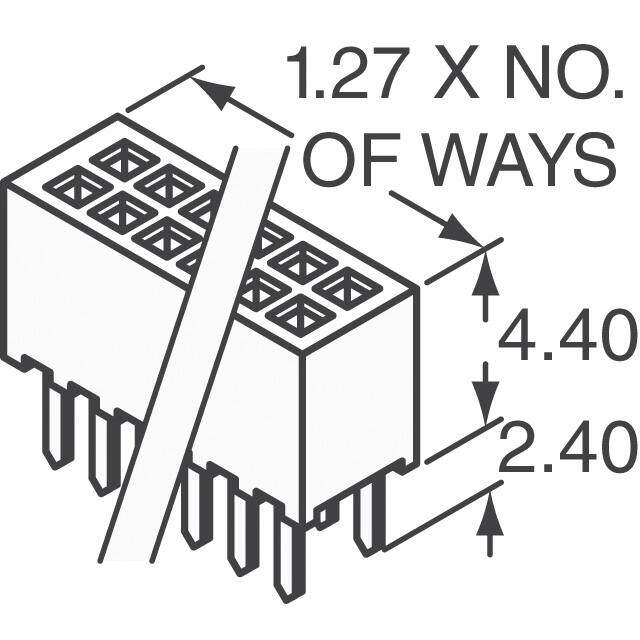

M50-3004045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 40+40 DIL VERT SKT
PDF
/
Inventory: 3821
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 5.4mm 6.08mm 9.37mm
Contact Finish Thickness - Mating Flash
Length 51.26mm
Technical
Durability 300 Cycles
Polarization Key POLARIZED HOUSING
Max Current Rating 1A
Mating Contact Pitch 0.05 inch
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
Rated Current (Signal) 1A
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Contact Length - Post 0.094 2.40mm
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.173 4.40mm
Depth 3.05mm
Orientation Straight
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature ROHS COMPLIANT
Number of Rows 2
Applications General Purpose, Medical, Telecommunications
Number of Positions 80
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Series Archer M50
Published 2013
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Housing Material Thermoplastic
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
