M22-7141242
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

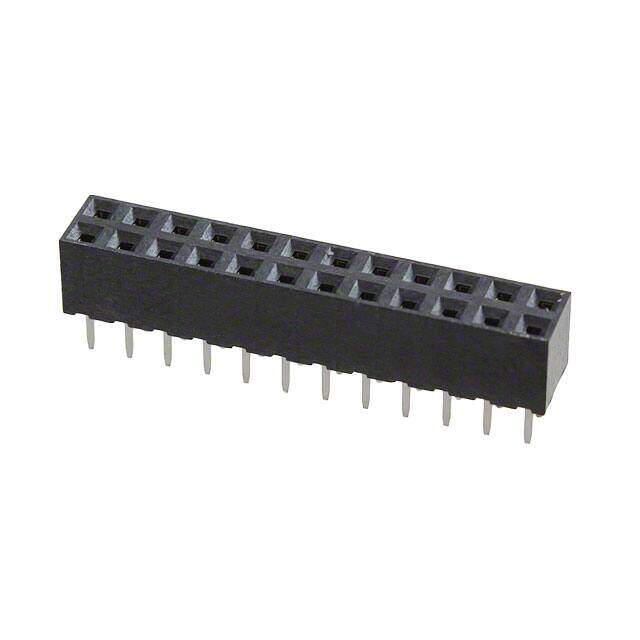

Headers & Wire Housings 12+12 DIL VERTICAL GOLD+TIN SOCKET
PDF
/
Buying Options
Total Price: USD $3.39
Unit Price: USD $3.388
≥1 USD $3.388
≥10 USD $2.912096
≥100 USD $2.70908
≥500 USD $2.302696
≥1000 USD $1.964072
Inventory: 392
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2015
Series M22
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 24
Applications General Purpose, Industrial, Telecommunications
Number of Rows 2
Voltage - Rated 500VAC
Additional Feature ROHS COMPLIANT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Current Rating (Amps) 2A
Orientation Straight
Depth 4mm
Insulation Height 0.173 4.40mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.094 2.40mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.157 inch
Contact Gender Female
UL Flammability Code 94V-0
Contact Resistance 20mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.079 inch
Max Current Rating 1A
Dimensions
Length 24mm
Stack Height (Mating) 5.8mm 6.55mm 6.8mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
