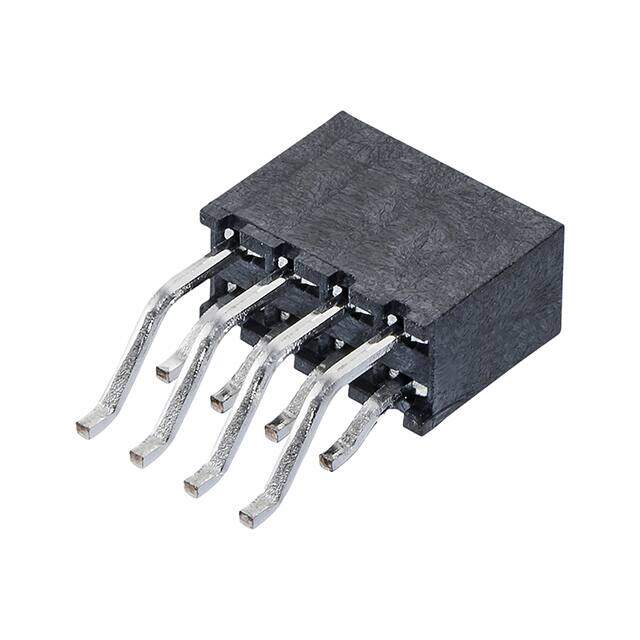

M22-6550442R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 8P 0.079 GOLD SMD R/A
PDF
/
Buying Options
Total Price: USD $1.27
Unit Price: USD $1.2672
≥1 USD $1.2672
≥10 USD $1.0692
≥100 USD $0.96008
Inventory: 12073
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 80.0μin 2.03μm
Contact Finish Thickness - Mating 0.59μin 0.015μm
Plating Thickness FLASH inch
Technical
Insertion Force-Max 1.946 N
Durability 300 Cycles
Mating Contact Pitch 0.079 inch
Insulation Resistance 1000000000Ohm
Body Depth 0.49 inch
Contact Gender FEMALE
Body Breadth 0.157 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.157 4.00mm
Total Number of Contacts 8
Current Rating (Amps) 2A
Contact Type Forked
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Applications General Purpose
Number of Positions 8
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series M22
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Mounting Option 1 LOCKING
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 13 Weeks
