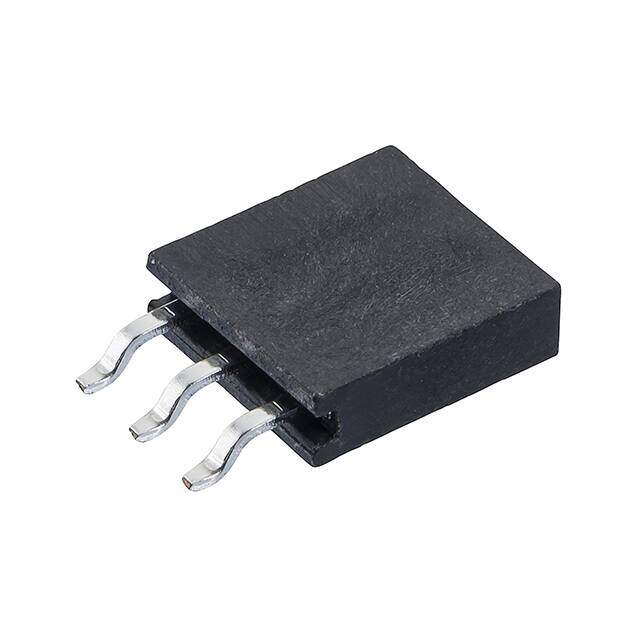

M22-6540342R

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 2MM SMD 3POS
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.682
≥100 USD $0.61204
≥500 USD $0.500755
Inventory: 1855
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 80.0μin 2.03μm
Contact Finish Thickness - Mating 0.59μin 0.015μm

Technical

Mating Contact Pitch 0.079 inch
Contact Resistance 20mOhm
Contact Gender FEMALE
Body Breadth 0.079 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 1
Body Length or Diameter 0.248 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.079 2.00mm
Terminal Pitch 2.0066mm
Total Number of Contacts 3
Current Rating (Amps) 2A
Contact Type Forked
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 1
Applications General Purpose
Number of Positions 3
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series M22
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C

Physical

Mounting Option 1 LOCKING
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 13 Weeks
