M22-6360542
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

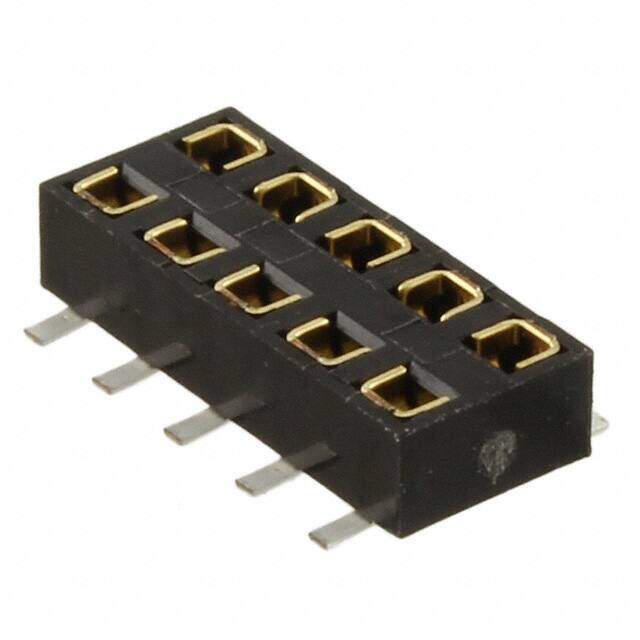

Conn Socket Strip SKT 10 POS 2mm Solder ST SMD T/R
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.7544
≥1 USD $2.7544
≥10 USD $2.312543
≥100 USD $2.202473
≥500 USD $1.872086
≥1000 USD $1.596769
≥3000 USD $1.431593
Inventory: 1058
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA9T), Nylon 9T
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2005
Series M22
JESD-609 Code e3
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom or Top Entry
Number of Positions 10
Applications General Purpose, Industrial, Telecommunications
Number of Rows 2
Gender Receptacle
Voltage - Rated 500V
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 250V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Current Rating (Amps) 2A
Total Number of Contacts 10
Orientation Straight
Depth 4.2mm
Insulation Height 0.079 2.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.5A
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Number Of PCB Rows 2
Lead Pitch 2mm
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.157 inch
Contact Gender Female
UL Flammability Code 94V-0
Contact Resistance 20mOhm
Insulation Resistance 10GOhm
Mating Contact Pitch 0.079 inch
Max Current Rating 1.5A
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Durability 300 Cycles
Dimensions
Length 10mm
Contact Finish Thickness - Mating Flash
Stack Height (Mating) 3.6mm 4.35mm 4.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
