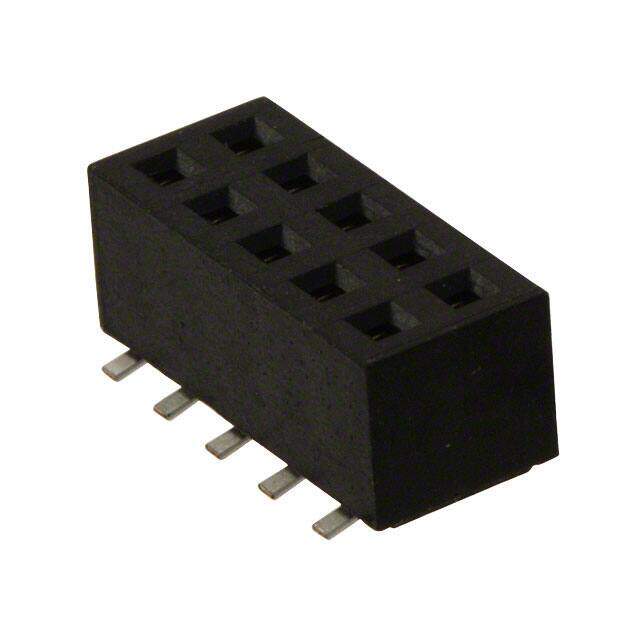

M22-6340542

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 10POS 0.079 GOLD SMD
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.4432
≥1 USD $1.4432
≥10 USD $1.179042
≥100 USD $1.12552
≥500 USD $0.937904
≥1000 USD $0.803915
≥3000 USD $0.712809
Inventory: 2247
Minimum: 1
-
+

Technical Details

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash
Length 10.5mm

Technical

Max Current Rating 1A
Contact Resistance 20mOhm
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
Contact Finish - Post Tin
Row Spacing - Mating 0.079 (2.00mm)
Pitch - Mating 0.079 2.00mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.169 4.30mm
Depth 4.6mm
Orientation Straight
Total Number of Contacts 5
Current Rating (Amps) 2A
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Voltage - Rated 500VAC
Gender Receptacle
Number of Rows 2
Applications General Purpose, Industrial, Telecommunications
Number of Positions 10
Connector Type Receptacle, Bottom or Top Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series M22
Published 2008
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Weight 331.009032mg
Housing Material Plastic
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 13 Weeks
