M20-7920642R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

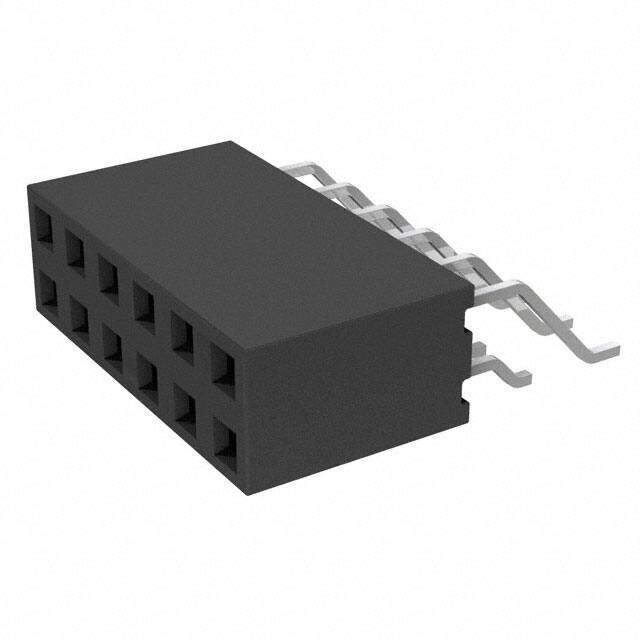

Conn Socket Strip F 12 POS 2.54mm Solder RA SMD T/R
PDF
/
Buying Options
Total Price: USD $1.95
Unit Price: USD $1.9536
≥1 USD $1.9536
≥10 USD $1.6984
≥100 USD $1.517472
Inventory: 1289
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA9T), Nylon 9T, Glass Filled
Mounting Option 1 LOCKING
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2016
Series M20
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 12
Applications General Purpose
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Forked
Current Rating (Amps) 3A
Total Number of Contacts 12
Insulation Height 0.197 5.00mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.61 inch
Row Spacing - Mating 0.100 (2.54mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.197 inch
Contact Gender FEMALE
Body Depth 0.618 inch
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Durability 300 Cycles
Insertion Force-Max 1.946 N
Dimensions
Contact Finish Thickness - Mating 0.59μin 0.015μm
Contact Finish Thickness - Post 80.0μin 2.03μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Alternative Model
