M20-7880442
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

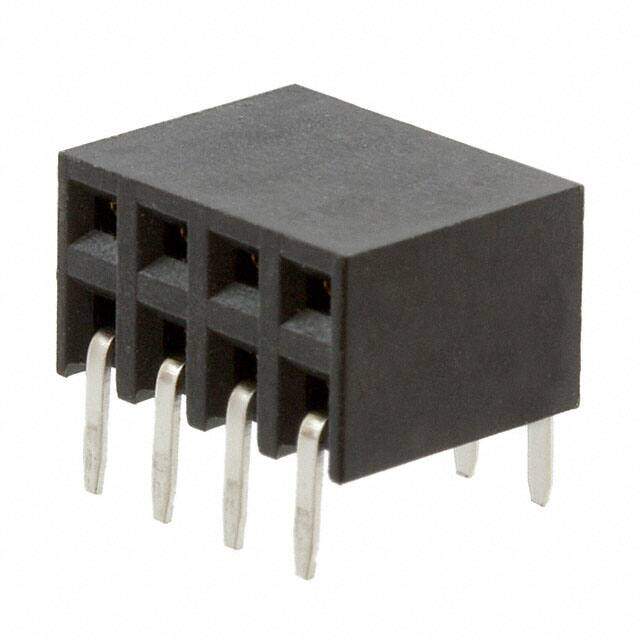

CONN RCPT 8POS 0.1 GOLD PCB R/A
PDF
/
Buying Options
Total Price: USD $1.57
Unit Price: USD $1.571456
≥1 USD $1.571456
≥10 USD $1.482503
≥100 USD $1.398592
≥500 USD $1.319427
≥1000 USD $1.244744
Inventory: 5176
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 10.16mm
Technical
Durability 300 Cycles
Max Current Rating 3A
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Contact Resistance 20mOhm
Rated Current (Signal) 3A
UL Flammability Code 94V-0
Contact Gender Female
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.232 5.90mm
Depth 8.1mm
Orientation Right Angle
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Voltage - Rated 1000V
Number of Rows 2
Applications General Purpose, Industrial, Telecommunications
Number of Positions 8
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series M20
Published 2012
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 13 Weeks
