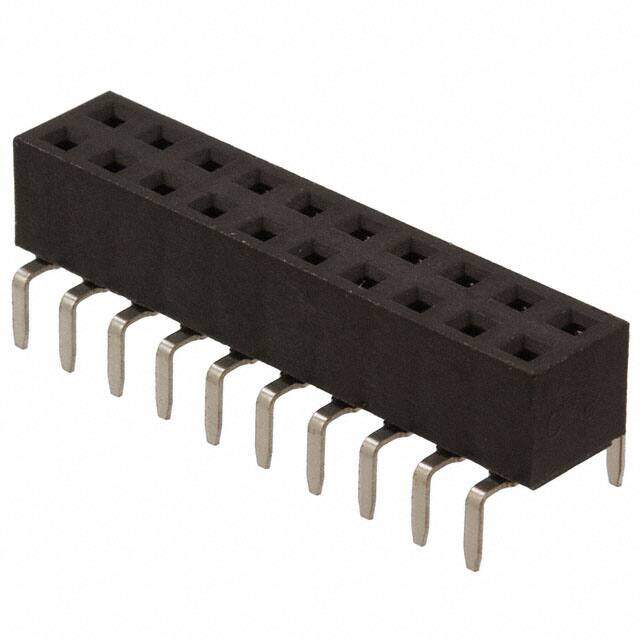

M20-7851046
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
2.54mm (0.1") Pitch DIL PC Tail Dual Entry Socket Assembly, 7.62mm tail spacing, tin, 10+10 contacts
PDF
/
Buying Options
Total Price: USD $2.27
Unit Price: USD $2.2704
≥1 USD $2.2704
≥10 USD $2.061998
≥100 USD $1.816716
≥500 USD $1.544206
≥1000 USD $1.317114
≥3000 USD $1.180863
Inventory: 112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2006
Series M20
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom or Top Entry
Number of Positions 20
Applications General Purpose, Industrial, Telecommunications
Number of Rows 2
Voltage - Rated 1000V
Additional Feature BOTTOM ENTRY
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Orientation Straight
Depth 5.2mm
Insulation Height 0.197 5.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Reach Compliance Code not_compliant
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.118 3.00mm
Number Of PCB Rows 4
Contact Gender Female
UL Flammability Code 94V-0
Housing Color Black
Rated Current (Signal) 3A
Contact Resistance 20mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Max Voltage Rating (AC) 500V
Max Current Rating 3A
Dimensions
Length 25.9mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
