M20-7842746

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Headers & Wire Housings 27P SIL PC TAIL SKT BOTTOM ENTRY TIN
PDF
/
Inventory: 8612
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Technical

PCB Contact Row Spacing 5.08 mm
Polarization Key POLARIZED HOUSING
Contact Resistance 20mOhm
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Contact Length - Post 0.118 3.00mm
Body Length or Diameter 2.72 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Reach Compliance Code not_compliant
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.197 5.00mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature BOTTOM ENTRY
Voltage - Rated 1000V
Number of Rows 1
Applications General Purpose, Industrial, Telecommunications
Number of Positions 27
Connector Type Receptacle, Bottom or Top Entry
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series M20
Published 2006
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Mounting Option 1 LOCKING
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze

Alternative Model

DW-20-09-F-D-224

DW-20-09-F-D-224

Samtec Inc.

Recommended For You

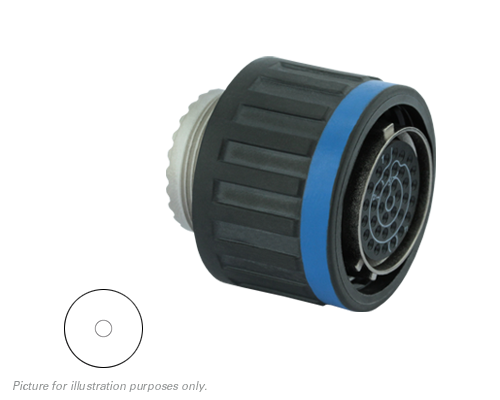

8D511M01BA
