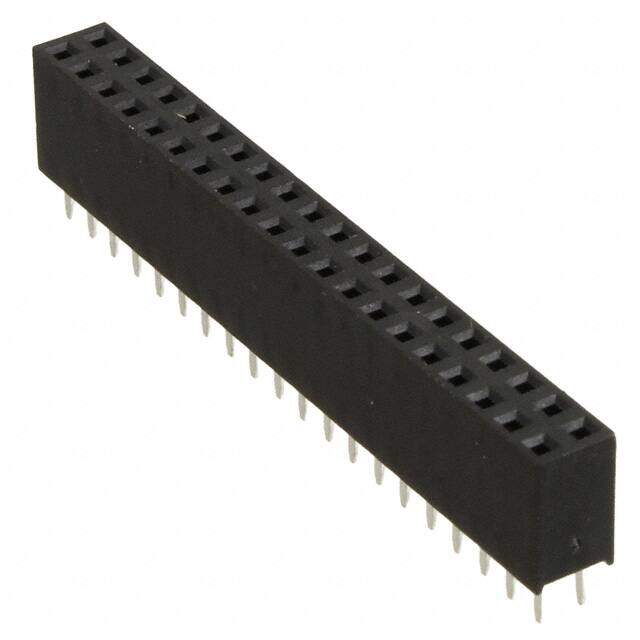

M20-7832046
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
2.54mm (0.1") Pitch DIL Vertical PC Tail Socket Assembly, tin, 20+20 contacts
PDF
/
Buying Options
Total Price: USD $3.48
Unit Price: USD $3.4848
≥1 USD $3.4848
≥10 USD $3.167199
≥100 USD $2.790797
≥500 USD $2.372207
≥1000 USD $2.023349
Inventory: 1078
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 11.04mm 12.63mm
Length 51.2mm
Technical
Hole Diameter 800 μm
Polarization Key POLARIZED HOUSING
Max Current Rating 3A
Mating Contact Pitch 0.1 inch
Insulation Resistance 1MOhm
Contact Resistance 20mOhm
Rated Current (Signal) 3A
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.198 inch
PCB Contact Pattern STAGGERED
Lead Pitch 2.54mm
Number Of PCB Rows 2
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.335 8.51mm
Depth 5.04mm
Orientation Straight
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Voltage - Rated 1000V
Number of Rows 2
Applications General Purpose, Industrial, Telecommunications
Number of Positions 40
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series M20
Published 2005
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Housing Material Polyamide
Material Glass, Polyester
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
