M20-7820342
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

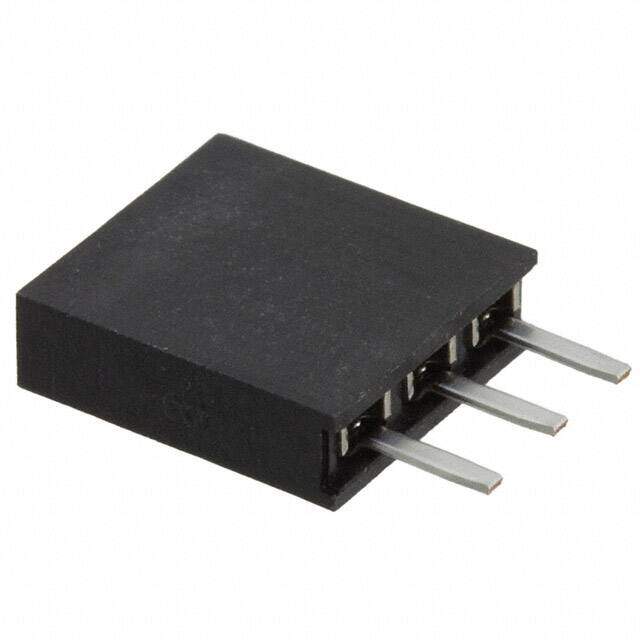

Headers & Wire Housings 3 PIN SIL VERTICAL SOCKET GOLD+TIN
PDF
/
Inventory: 3130
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case SIL
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Weight 270.000858mg
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2012
Series M20
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 3
Applications General Purpose, Industrial, Telecommunications
Number of Rows 1
Voltage - Rated 1000V
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Orientation Straight
Terminal Pitch 2.54mm
Depth 2.5mm
Insulation Height 0.335 8.51mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.118 3.00mm
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.098 inch
Contact Gender Female
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Contact Resistance 20mOhm
Max Current Rating 3A
Polarization Key POLARIZED HOUSING
Dimensions
Length 8.02mm
Contact Finish Thickness - Mating Flash
Stack Height (Mating) 11.04mm 12.63mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
